MCB系列-MCBA
台灣地區總代理
電腦直流電伺服器控制起子(DC System)產品規格：
MCB系列 MCBA型電腦控制電動螺絲起子系列
- 使用時需搭配扭力板手本體,資料彙整單元,控制單元,資料傳輸線
- 精密度可達到2%,適合需要高精密度的產業使用
- 直接控制扭力,直接用控制單元控制出力
-
購注意事項：建議選購適當扭力,避免因機具扭力過大滑牙.需注意工作範圍與負荷重量來選購.選購時需搭配主機及傳輸纜線組合
產品特點：精密度高,可靠性高,2%扭力誤差.增加工作效率,除了扭力輸出,也可以做角度測量
 |  |
 |  |  |

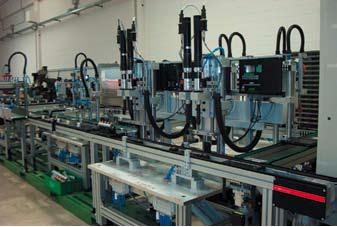

| 使用範例 | 使用範例 | 使用範例 |
| 型號 | 扭力範圍 (NM) | 轉速 RPM | 重量 (KG) | 方頭尺寸 inch " | 資料彙整單元 | 控制單元 |
| 15MCB05A1 | 0.5~5 | 1700 | 2.3 | 3/8" | TOD-L | TOC |
| 15MCB05A2 | 0.5~5 | 1700 | 2.6 | 3/8" | TOD-L | TOC |
| 17MCB05A1 | 0.5~5 | 700 | 3.2 | 3/8" | TOD-H1 | TOC |
| 17MCB05A2 | 0.5~5 | 700 | 3.5 | 3/8" | TOD-H1 | TOC |
| 15MCB10A1 | 1~10 | 700 | 2.4 | 3/8" | TOD-L | TOC |
| 15MCB10A2 | 1~10 | 700 | 2.7 | 3/8" | TOD-L | TOC |
| 17MCB10A1 | 1~10 | 700 | 3.2 | 3/8" | TOD-H1 | TOC |
| 17MCB10A2 | 1~10 | 700 | 3.5 | 3/8" | TOD-H1 | TOC |
| 15MCB20A1 | 2~20 | 350 | 2.4 | 3/8" | TOD-L | TOC |
| 15MCB20A2 | 2~20 | 350 | 2.7 | 3/8" | TOD-L | TOC |
| 17MCB30A1 | 3~30 | 600 | 3.2 | 3/8" | TOD-H1 | TOC |
| 17MCB30A2 | 3~30 | 600 | 3.5 | 3/8" | TOD-H1 | TOC |
| 17MCB20A1 | 2~20 | 1500 | 4.7 | 3/8" | TOD-H2 | TOC |
| 17MCB20A2 | 2~20 | 1500 | 5 | 3/8" | TOD-H2 | TOC |
| 17MCB35A1 | 4~35 | 700 | 4.7 | 1/2" | TOD-H2 | TOC |
| 17MCB35A2 | 4~35 | 700 | 5 | 1/2" | TOD-H2 | TOC |
| 17MCB50A1 | 5~50 | 500 | 5.2 | 1/2" | TOD-H2 | TOC |
| 17MCB50A2 | 5~50 | 500 | 5.5 | 1/2" | TOD-H2 | TOC |
| 47MCB45A1 | 5~45 | 1250 | 7 | 1/2" | TOD-H3 | TOC |
| 47MCB45A2 | 5~45 | 1250 | 7.3 | 1/2" | TOD-H3 | TOC |
| 47MCB65A1 | 7~65 | 600 | 7 | 1/2" | TOD-H3 | TOC |
| 47MCB65A2 | 7~65 | 600 | 7.3 | 1/2" | TOD-H3 | TOC |
| 47MCB90A1 | 9~90 | 420 | 7 | 1/2" | TOD-H3 | TOC |
| 47MCB90A2 | 9~90 | 420 | 7.3 | 1/2" | TOD-H3 | TOC |
| 型號 | NM | kg.cm | kg.m | in.lb | ft.lb |
| 15MCB05A1 | 0.5 | 5.095 | 0.05095 | 4.426 | 0.36875 |
| 15MCB05A1 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 15MCB05A2 | 0.5 | 5.095 | 0.05095 | 4.426 | 0.36875 |
| 15MCB05A2 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 17MCB05A1 | 0.5 | 5.095 | 0.05095 | 4.426 | 0.36875 |
| 17MCB05A1 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 17MCB05A2 | 0.5 | 5.095 | 0.05095 | 4.426 | 0.36875 |
| 17MCB05A2 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 15MCB10A1 | 1 | 10.19 | 0.1019 | 8.852 | 0.7375 |
| 15MCB10A1 | 10 | 101.9 | 1.019 | 88.52 | 7.375 |
| 15MCB10A2 | 1 | 10.19 | 0.1019 | 8.852 | 0.7375 |
| 15MCB10A2 | 10 | 101.9 | 1.019 | 88.52 | 7.375 |
| 17MCB10A1 | 1 | 10.19 | 0.1019 | 8.852 | 0.7375 |
| 17MCB10A1 | 10 | 101.9 | 1.019 | 88.52 | 7.375 |
| 17MCB10A2 | 1 | 10.19 | 0.1019 | 8.852 | 0.7375 |
| 17MCB10A2 | 10 | 101.9 | 1.019 | 88.52 | 7.375 |
| 15MCB20A1 | 2 | 20.38 | 0.2038 | 17.704 | 1.475 |
| 15MCB20A1 | 20 | 203.8 | 2.038 | 177.04 | 14.75 |
| 15MCB20A2 | 2 | 20.38 | 0.2038 | 17.704 | 1.475 |
| 15MCB20A2 | 20 | 203.8 | 2.038 | 177.04 | 14.75 |
| 17MCB30A1 | 3 | 30.57 | 0.3057 | 26.556 | 2.2125 |
| 17MCB30A1 | 30 | 305.7 | 3.057 | 265.56 | 22.125 |
| 17MCB30A2 | 3 | 30.57 | 0.3057 | 26.556 | 2.2125 |
| 17MCB30A2 | 30 | 305.7 | 3.057 | 265.56 | 22.125 |
| 17MCB20A1 | 2 | 20.38 | 0.2038 | 17.704 | 1.475 |
| 17MCB20A1 | 20 | 203.8 | 2.038 | 177.04 | 14.75 |
| 17MCB20A2 | 2 | 20.38 | 0.2038 | 17.704 | 1.475 |
| 17MCB20A2 | 20 | 203.8 | 2.038 | 177.04 | 14.75 |
| 17MCB35A1 | 4 | 40.76 | 0.4076 | 35.408 | 2.95 |
| 17MCB35A1 | 35 | 356.65 | 3.5665 | 309.82 | 25.8125 |
| 17MCB35A2 | 4 | 40.76 | 0.4076 | 35.408 | 2.95 |
| 17MCB35A2 | 35 | 356.65 | 3.5665 | 309.82 | 25.8125 |
| 17MCB50A1 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 17MCB50A1 | 50 | 509.5 | 5.095 | 442.6 | 36.875 |
| 17MCB50A2 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 17MCB50A2 | 50 | 509.5 | 5.095 | 442.6 | 36.875 |
| 47MCB45A1 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 47MCB45A1 | 45 | 458.55 | 4.5855 | 398.34 | 33.1875 |
| 47MCB45A2 | 5 | 50.95 | 0.5095 | 44.26 | 3.6875 |
| 47MCB45A2 | 45 | 458.55 | 4.5855 | 398.34 | 33.1875 |
| 47MCB65A1 | 7 | 71.33 | 0.7133 | 61.964 | 5.1625 |
| 47MCB65A1 | 65 | 662.35 | 6.6235 | 575.38 | 47.9375 |
| 47MCB65A2 | 7 | 71.33 | 0.7133 | 61.964 | 5.1625 |
| 47MCB65A2 | 65 | 662.35 | 6.6235 | 575.38 | 47.9375 |
| 47MCB90A1 | 9 | 91.71 | 0.9171 | 79.668 | 6.6375 |
| 47MCB90A1 | 90 | 917.1 | 9.171 | 796.68 | 66.375 |
| 47MCB90A2 | 9 | 91.71 | 0.9171 | 79.668 | 6.6375 |
| 47MCB90A2 | 90 | 917.1 | 9.171 | 796.68 | 66.375 |
